OC-SENSOR PLEDIA
Fully automated fecal test analyzer

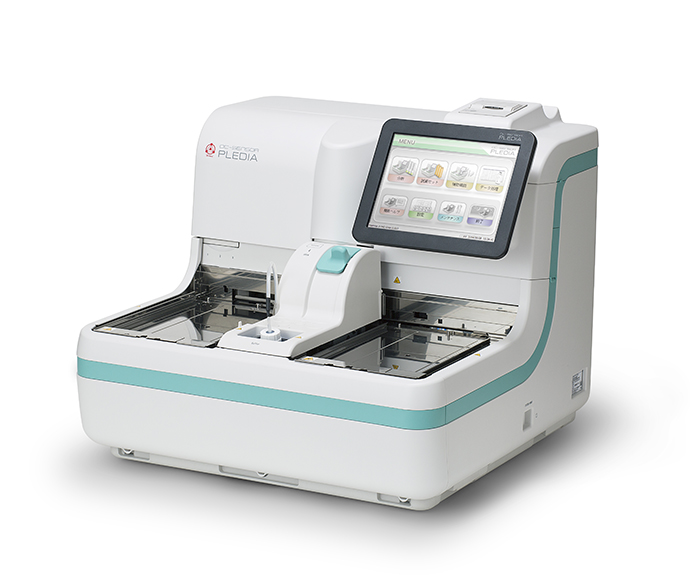

OC-SENSOR PLEDIA
OC-SENSOR PLEDIA is the high-end fecal test analyzer for Fecal immunochemical test and Fecal calprotectin test. Maximum 200 samples can be performed at one time and the sampling throughput is 320 tests per an hour. The operation is simple as just pressing “start” is required for analyzing.
Featured publications
| Chiang TH, Chuang SL, Chen SL, et al. Difference in performance of fecal immunochemical tests with the same hemoglobin cutoff concentration in a nationwide colorectal cancer screening program. Gastroenterology. 2014;147(6):1317-1326. PubMed > |
|
Zubero MB, Arana-Arri E, Pijoan JI, et al. Population-based colorectal cancer screening: comparison of two fecal occult blood test. Front Pharmacol. 2014;4:175. PubMed > |
|
van Rossum LG, Van Rijn AF, Laheij RJ, et al. Random comparison of guaiac and immunochemical fecal occult blood tests for colorectal cancer in a screening population. Gastroenterology 2008;35:82–90. PubMed > |
OC-SENSOR FIT Introduction Movie 2022
The 2-minute video shows how colorectal cancer screening is implemented with OC-SENSOR.
OC-SENSOR PLEDIA is designed for use in the screening where high throughput is required. Learn more about OC-SENSOR PLEDIA’s role in the field.

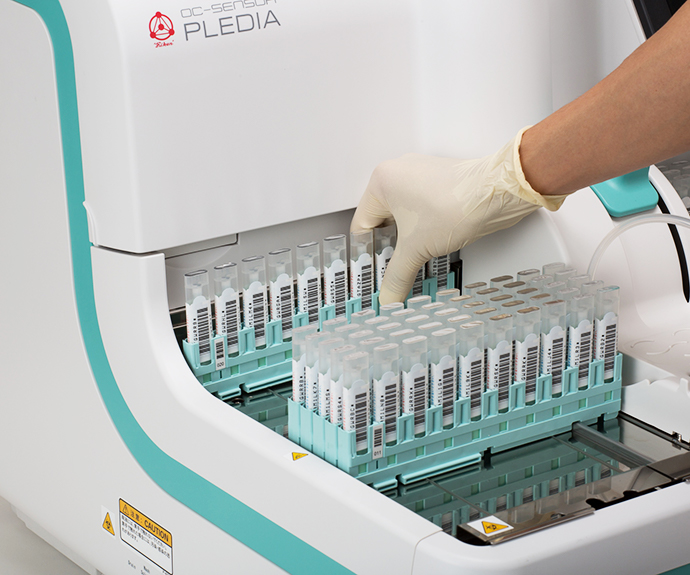

High throughput-sampling

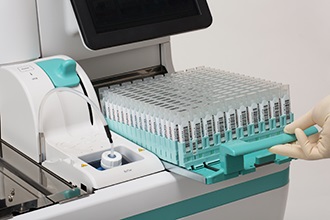

200 samples at one time

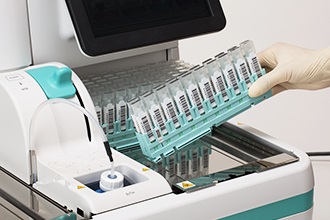

Continuous loading is available
Throughput is 320 tests per an hour

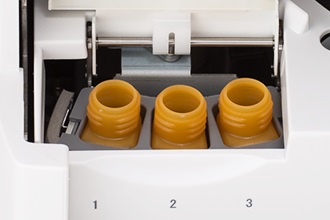

Maximum 3 reagents can be set
Advanced usability

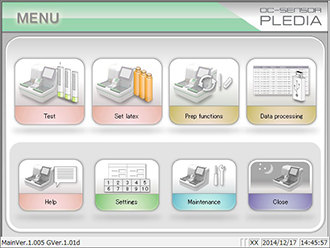

User friendly touch panel
10.5 inch LCD touch panel. The adjustable display angle improves visibility

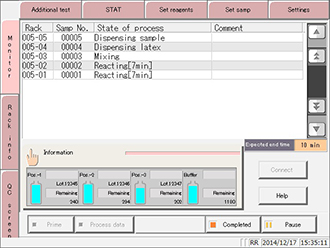

Real-time information is available
Including information on reagents and sample processing time.

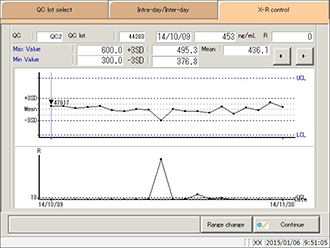

Quality control function
X-R control screen, CV auto calculation, etc. Massive QC function is available
Complete automation system

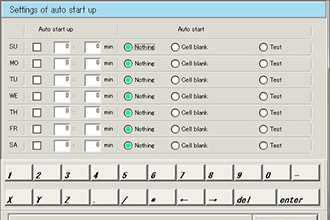

Equipped with the capability for automatic startup, start, and shut down.
Barcodes on racks enable the measurement mode to be identified automatically.

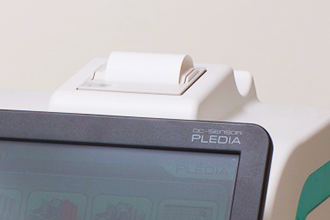

Results are automatically printed out soon after the analysis.

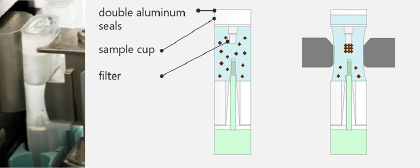

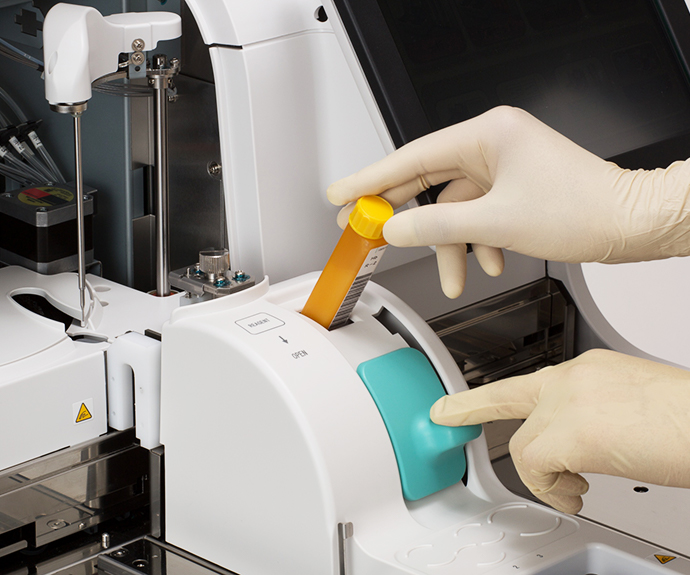

Squeeze-up system
The filtered sample goes into the sample cup part when squeezed by the instrument, then sampled into the reaction cuvette.
Only filtered sample solution is dispensed for analysis.
Benefits:
- - Reduce carry-over
- - Minimize analyzer maintenance
- - Help achieve high reproducibility
- - No need to open the device caps or pour sample into cups
Eiken Quality Control Survey (EQCS)

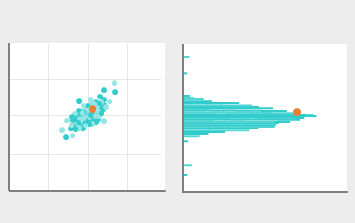

We offer an external quality assessment service (Eiken Quality Control Survey; EQCS) for OC-SENSOR users through our local distributors. The service started in 1995 and currently more than 1500 laboratories from 20+ countries participate in the program every year. EQCS supports laboratories to assess their performance objectively by comparison of the testing results among the participants. *Currently we are conducting surveys for FIT only
Specification
| Product Name | OC-SENSOR PLEDIA |
|---|---|
| Principle | Latex agglutination immunoturbidimetry |
| Throughput | 320 tests/hour |
| Sample Loading Capacity | 10-sample rack x 20 *200-sample rack-tray (optional) |
| STAT Sample | Up to 10 samples simultaneously |
| Sample Dilution | 15 times and 250 times |
| Reaction Cuvette | Semi-disposable acrylic cuvette (11 serial cells × 5 cuvettes) Automatic cuvette cleaning with wash solution and purified water |
| Sampling System | Drawn up by reagent nozzle (Liquid surface detection, automatic cleaning with wash solution and purified water) |
| Reagent Dispense | Drawn up by reagent nozzle (Liquid surface detection, automatic cleaning with purified water) |
| Mixing System | By spinning mixer (automatic cleaning with wash solution and purified water) |
| Thermostatic System | Reaction wheel: air bath block heater, Reagent housing: block heater |
| Light Source | LED (wavelength 660 nm) |
| Light Detector | Photodiode |
| Data Input | Color LCD touch panel (10.5 inches) |
| Memory Capacity | 100,000 test results |
| Data Output | Built-in thermal printer, RS-232C, USB |
| Barcodes | Rack barcode, sample barcode, reagent barcode, two-dimensional barcode (optional) |
| Dimensions | W630mm × D630mm × H560mm |
| Weight | 58kg |
| Power Required | AC100-240V 50/60Hz, 500VA |
| Applicable standards and laws | The PMDAct, CE, TGA, TFDA |
