OC-SENSOR io
Fecal Immunochemical Test
Fully automated fecal occult blood analyzer
OC-SENSOR io
OC-Sensor io is a compact-sized fecal immunochemical test analyzer. The operation is simple as just pressing “start” is required for analyzing. The throughput is 88 tests per hour and continuous loading of samples, latex reagent and cuvettes is available during analysis.
Featured Publication
|
Chiang TH, Chuang SL, Chen SL, et al. Difference in performance of fecal immunochemical tests with the same hemoglobin cutoff concentration in a nationwide colorectal cancer screening program. Gastroenterology. 2014;147(6):1317-1326. PubMed > |
|
Zubero MB, Arana-Arri E, Pijoan JI, et al. Population-based colorectal cancer screening: comparison of two fecal occult blood test. Front Pharmacol. 2014;4:175. PubMed > |
|
van Rossum LG, Van Rijn AF, Laheij RJ, et al. Random comparison of guaiac and immunochemical fecal occult blood tests for colorectal cancer in a screening population. Gastroenterology 2008;135:82–90. PubMed > |
OC-SENSOR FIT Introduction Movie 2022
OC-SENSOR FIT has been evaluated and adopted in colorectal cancer screening programs worldwide. The 2-minute video shows how the screening is implemented with OC-SENSOR.

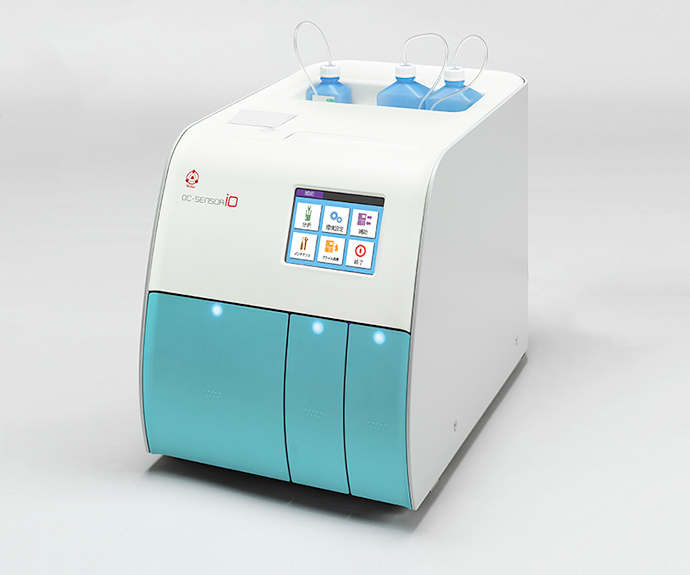

Compact body, high performance
OC-SENSOR io is a compact-sized and fully automated fecal occult blood test (FOBT) analyzer. The operation is simple as just pressing “start” is required for analyzing. The throughput is 88 tests per hour, and moreover, continuous loading samples, latex reagent and cuvettes is available during analysis.

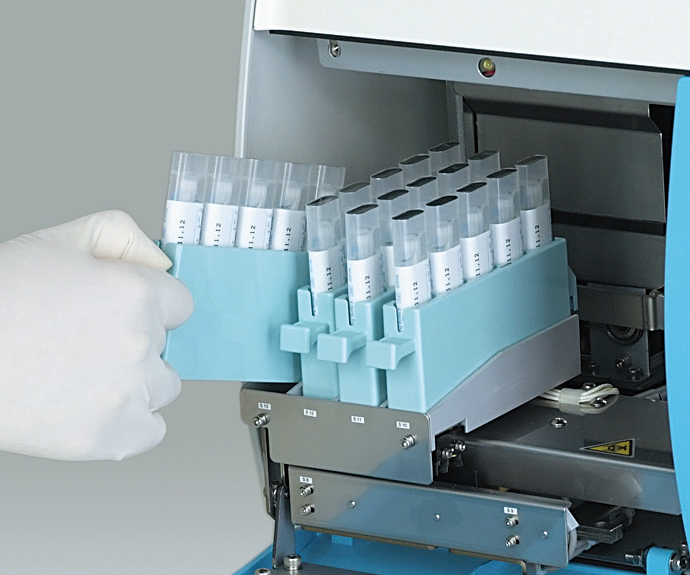

5 samples for 1 rack, 20 samples (4 racks) / insert.
Continuous loading samples, latex reagent and buffer is available during analysis.
Mixing function for high reproducibility.

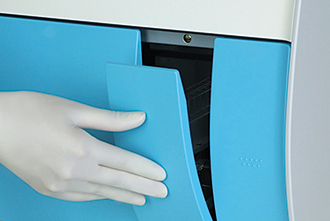

Push to open the cover, LED indicator for sample loading.
5.7 inches LCD touch panel.
Operation procedure
1. Set the sample racks, cuvettes and latex reagent.

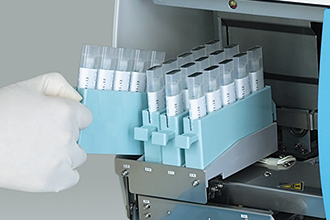

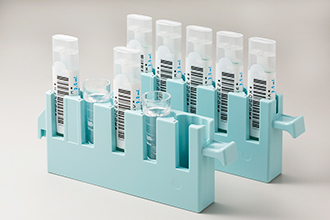

Sample rack
(accessories for OC-SENSOR io)

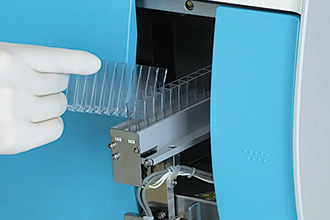

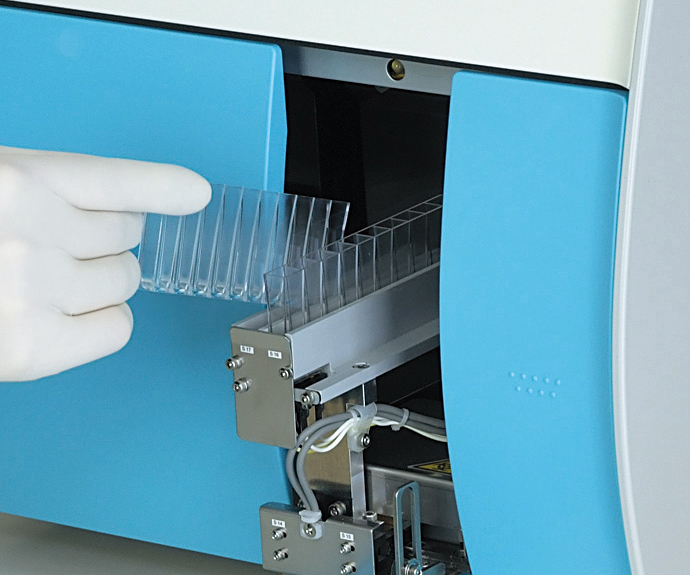

Cuvettes (disposable cells)

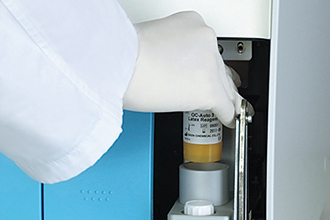

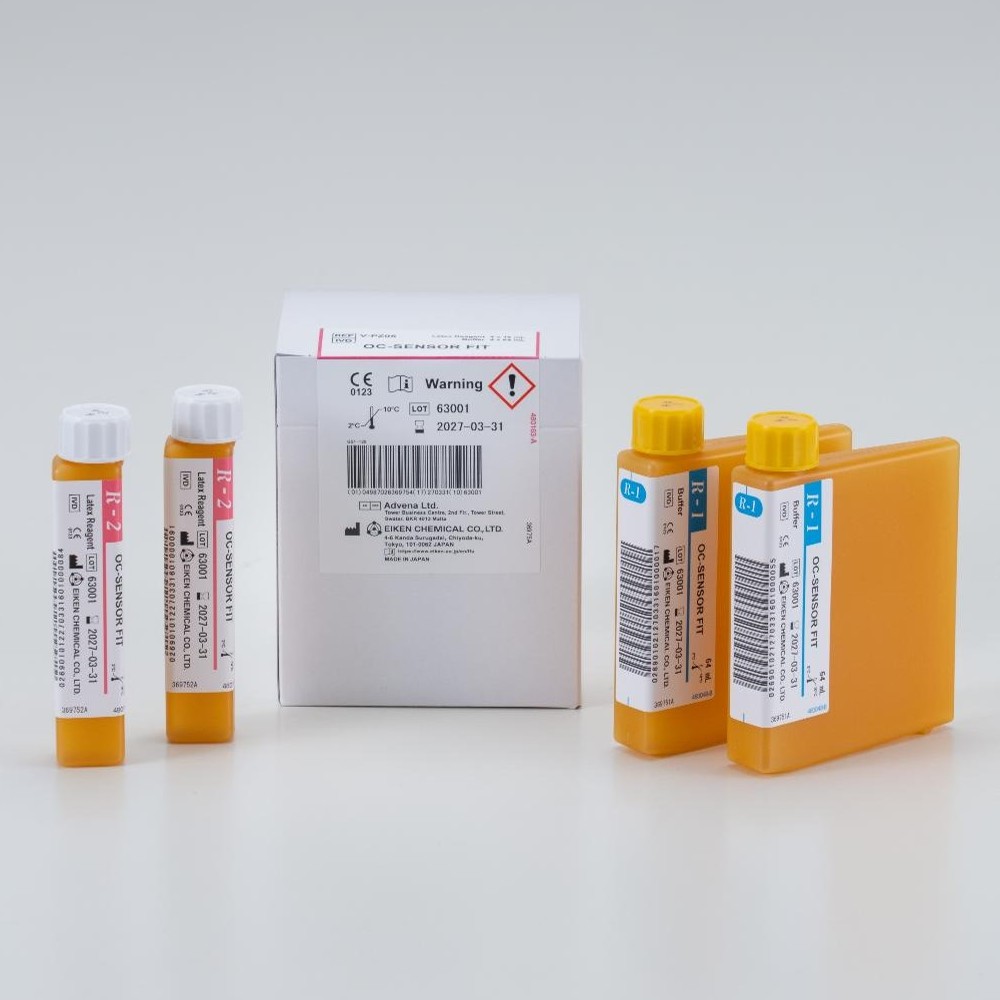

Latex reagent for OC-SENSOR io
2. Press START button on the touch panel.
3. The first test result will be printed out in 7 minutes. 88 tests can be analyzed an hour.

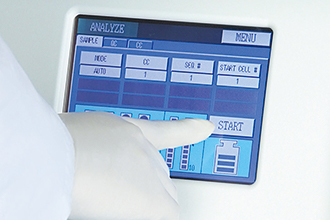

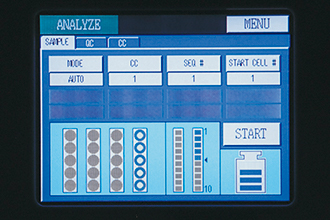

Touch panel

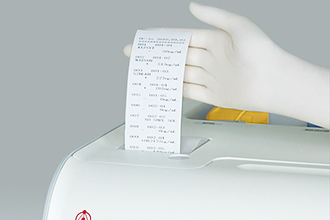

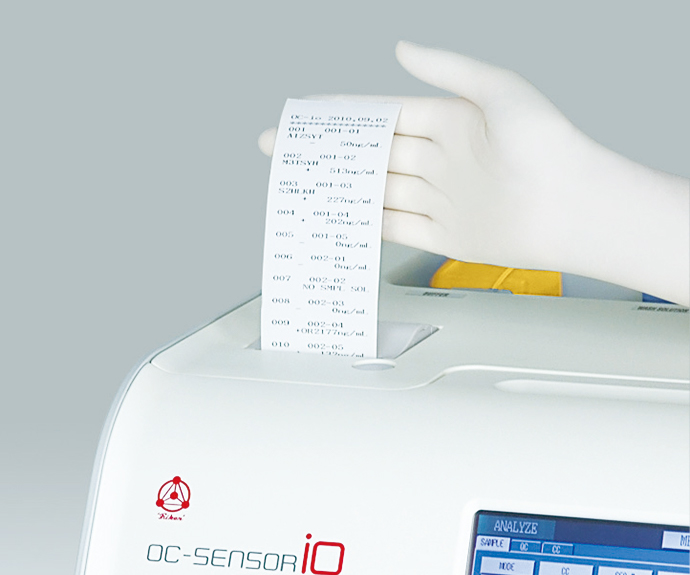

Result printing

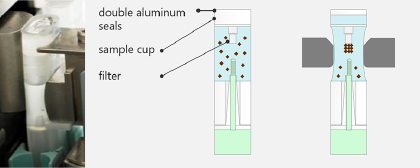

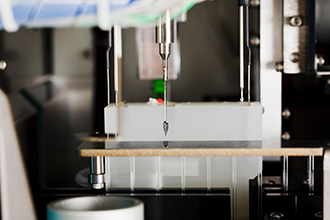

Squeeze-up system
The filtered sample goes into the sample cup part when squeezed by the instrument, then sampled into the reaction cuvette. Only filtered sample solution is dispensed for analysis.
Benefits
- - Reduce carry-over
- - Minimize analyzer maintenance
- - Help achieve high reproducibility
- - No need to open the device caps or pour sample into cups

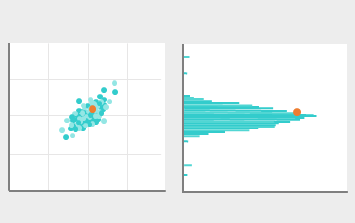

Eiken Quality Control Survey (EQCS)
We offer an external quality assessment service (Eiken Quality Control Survey; EQCS) for OC-SENSOR users through our local distributors. The service started in 1995 and currently more than 1500 laboratories from 20+ countries participate in the program every year. EQCS supports laboratories to assess their performance objectively by comparison of the testing results among the participants.
Specification
|
Name |
OC-SENSOR io |
|---|---|
|
Principle |
Latex agglutination immuno-turbidimetry (same reagent content) |
|
Operation Speed |
88 tests/hour |
|
Sample Loading Capacity |
5-samples ×4racks (contentiously sample loading) |
|
Light Source |
LED |
|
Data Input |
Color LCD touch panel |
|
Barcodes |
Sample Barcodes, Rack Barcodes |
|
Data Output |
Built-in thermal printer, RS-232C, USB |
|
Weight |
35kg |
|
Dimension |
W360 x D560 x H425 (mm) |
